Description

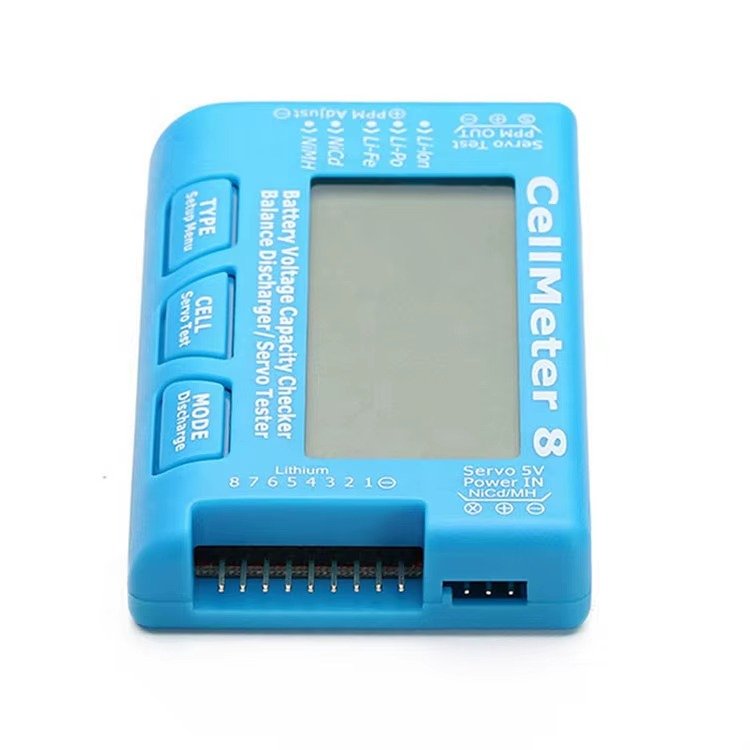

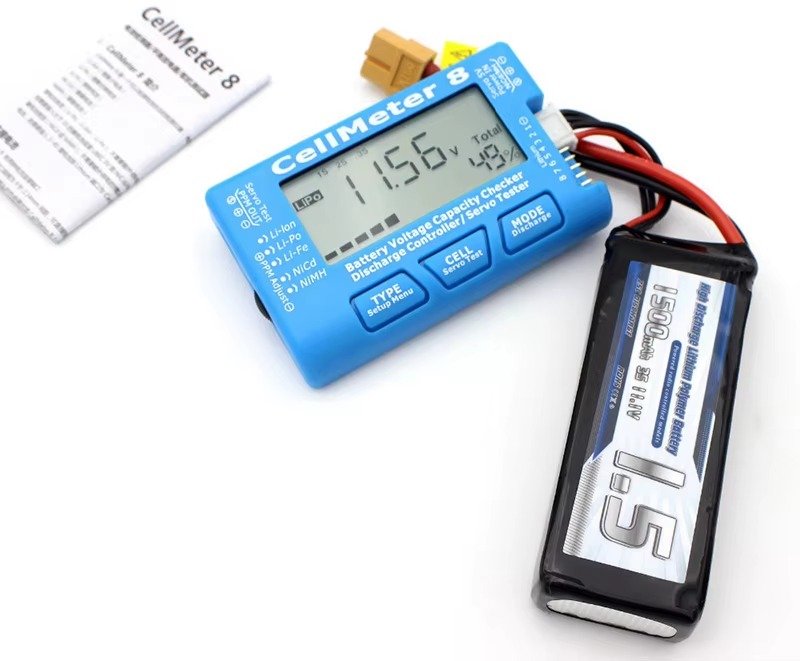

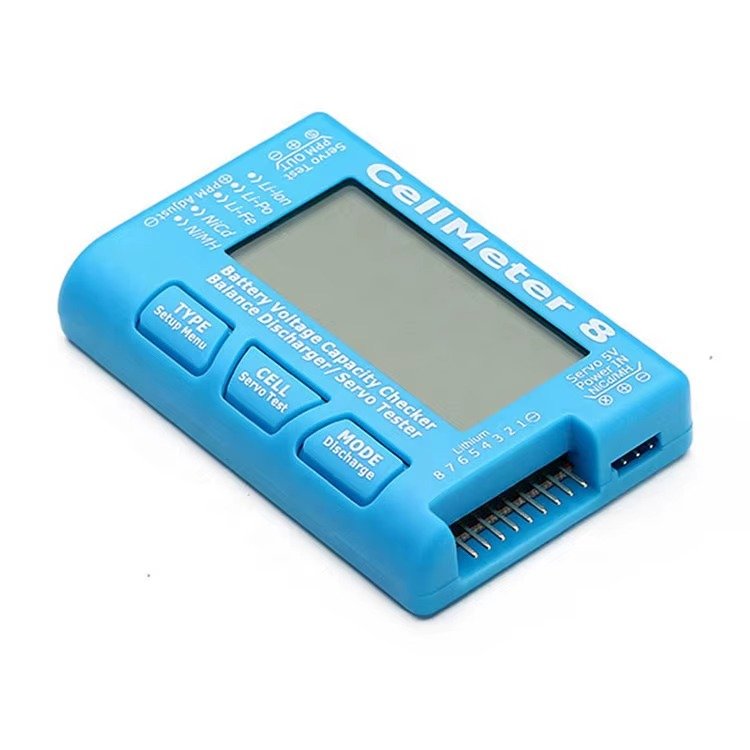

This RC CellMeter-8 digital battery capacity checker is able to be used for LiPo LiFe Li-ion NiMH Nicd batteries.

Features:
Support Battery Type:LiPo, LiFe, Li-ion, NiCd, NiMH
Servo Test Mode:Manual adjustment, Auto Matic, Neutral
Servo Test Frequency: 50Hz, 60Hz, 100Hz, 125Hz, 200Hz, 250Hz, 300Hz
Display Mode: Battery cell voltages, Total Voltages, Lowest cell voltage, Highest cell voltage, Voltage gap between highest cell voltage and Lowest cell voltage, Remaining battery capacity(%).

Battery voltage, detection accuracy of 0.001V
Test 2-8s lithium battery
Discharge current 1A
Balance current 1A
Servo test: broadband, narrowband, 1000-2000us, 500-2500us
Multi function tester for testing narrow frequency steering gear
With backlight

It can be used in 2-8s lithium battery and 4-8s nickel cadmium battery
Press the type key to select three kinds of lithium batteries: lipo (lithium polymer battery), life (lithium iron battery) and Li-ion (lithium ion battery)
Press the cell key to display the voltage and remaining power of each battery in turn
Press mode key to display battery voltage, single chip voltage, single chip maximum voltage, single chip minimum voltage, single chip maximum and minimum voltage difference
It can display the total number and voltage of 4s-8s Ni MH and Ni Cd batteries

Specifications:
Item size: 84x15x53mm
Item Weight: 49.7g
Package size: 134x82x30mm
Package Weight: 55g

packing content:
100% Brand New
Digital battery checker x 1
