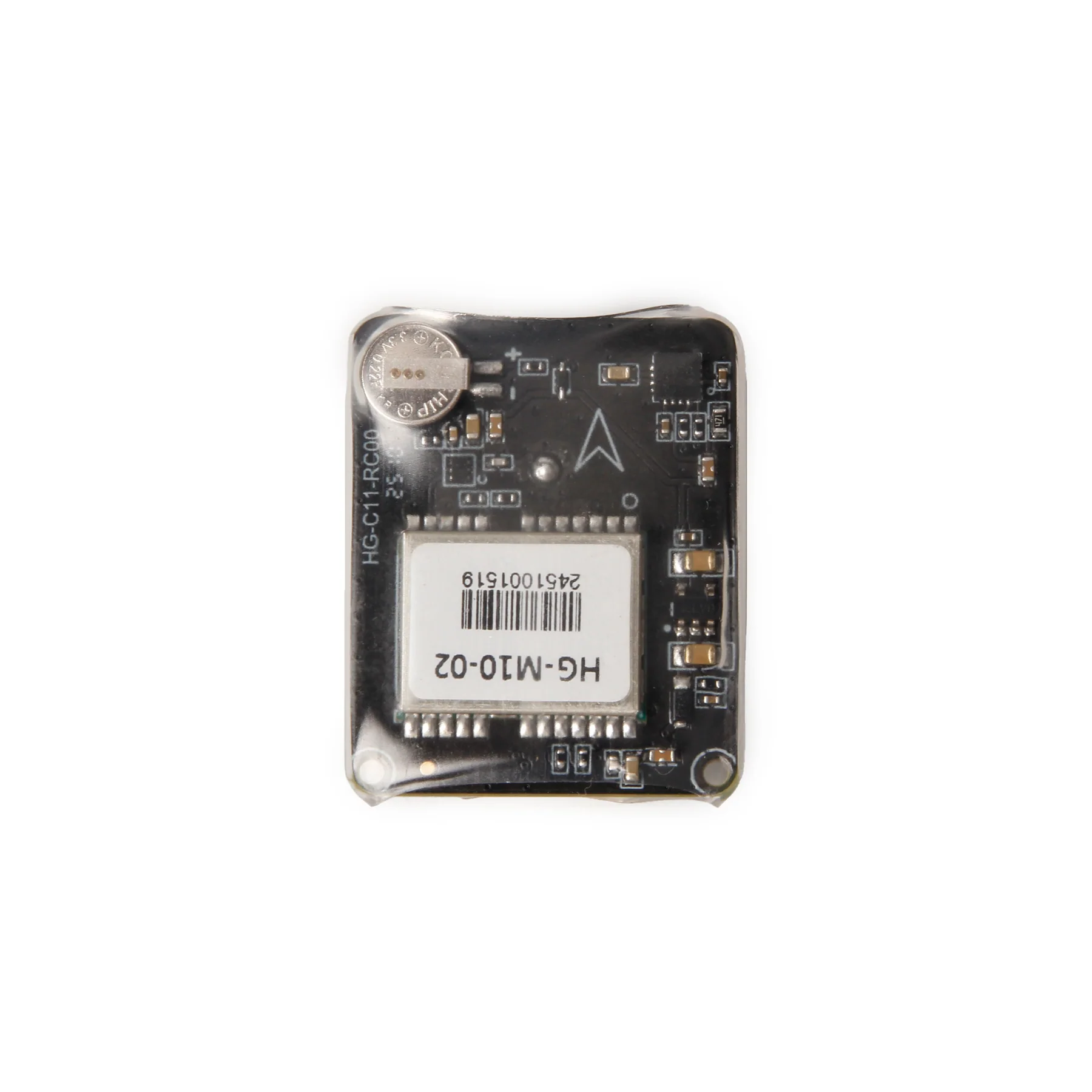

Holybro GPS Micro M10 IST8310 - With Case - Image 2

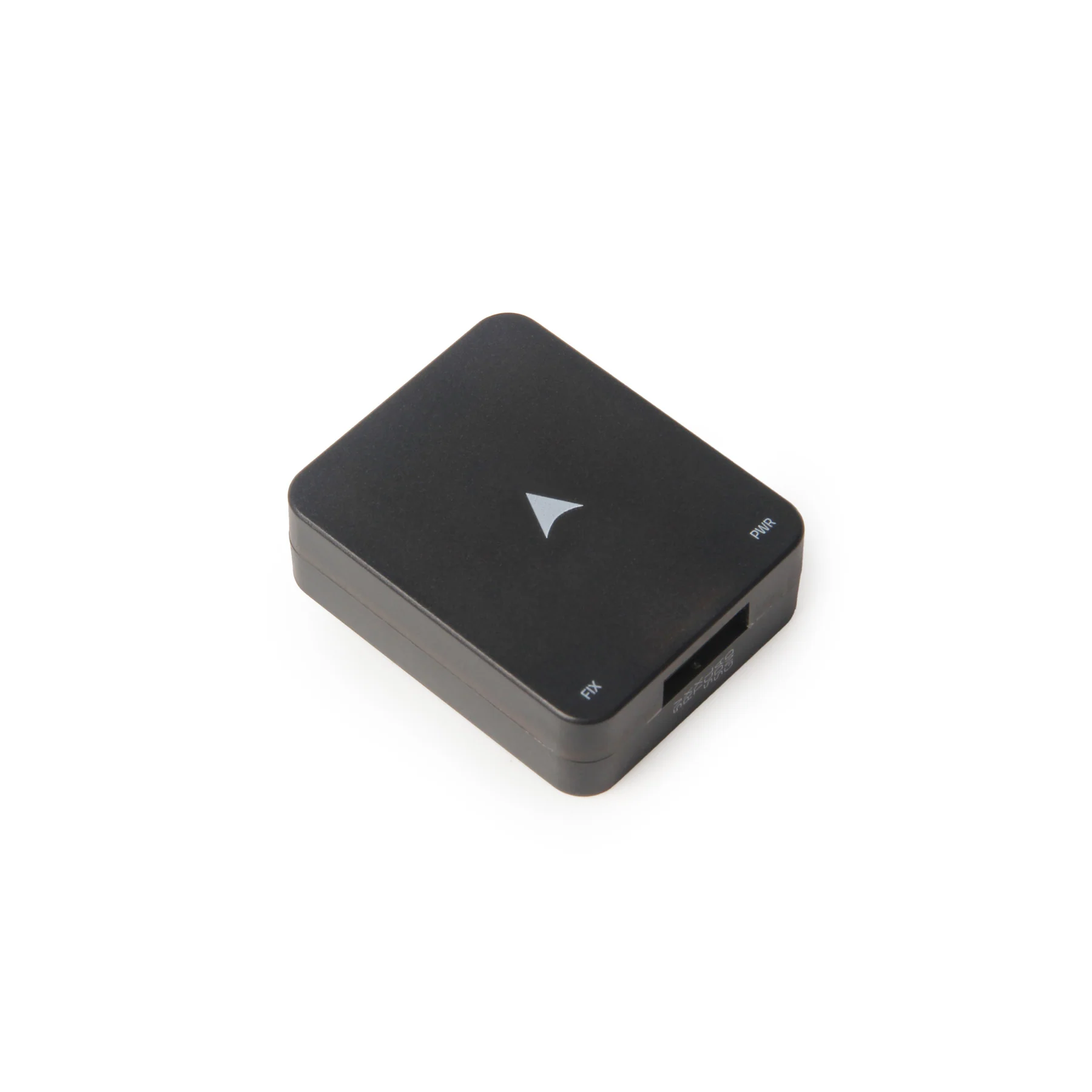

Holybro GPS Micro M10 IST8310 - With Case - Image 3

Holybro GPS Micro M10 IST8310 – With Case

Rp0,00

Available on backorder

Categories: , Brand:

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently. It also comes with the IST8310 or IST8308 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

Description

Features

  • Newest Ublox 10th Gen GNSS
  • Fast & Accurate Positioning
  • IST8310 or IST8308 Compass
  • Small Form Factor

Specifications:

Holybro Micro M10 GPS Holybro Micro M9N GPS
GNSS Receiver Ublox M10 Ublox M9N
Number of Concurrent GNSS Up to 4 GNSS
– BeiDou
– Galileo
– GLONASS
– GPS
– QZSS		 Up to 4 GNSS
– BeiDou
– Galileo
– GLONASS
– GPS
– QZSS
Frequency Band – GPS L1
– Galileo E1
– GLONASS L1
– BeiDou B1
– SBAS L1
– QZSS L1		 – GPS L1
– Galileo E1
– GLONASS L1
– BeiDou B1
– SBAS L1
– QZSS L1
Compass IST8310 or IST8308 IST8310 or IST8308
Output Protocol – UBX (U-blox)
– NMEA		 – UBX (U-blox)
– NMEA
Accuracy 2.0m CEP 1.5m CEP
Nav. Update Rate Up to 25 Hz (single GNSS),
Up to 10 Hz (4 concurrent GNSS)		 Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S		 EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S
Default Baud Rate 115200 115200
Input Voltage 4.7-5.2V 4.7-5.2V
Port Type JST-GH-6P JST-GH-6P
Antenna 25 x 25 x 4 mm ceramic patch antenna
Antenna Gain 1.5dbi
Antenna LNA Gain 22dB
Power consumption Less than 200mA @ 5V Less than 200mA @ 5V
Operating Temperature -40~80C -40~80C
Dimension – 32 x 26 x 9mm (w/o Case)
– 34 x 28 x 11mm (With Case)		 – 32 x 26 x 9mm (w/o Case)
– 34 x 28 x 11mm (With Case)
Weight – 14g (w/o Case)
– 16g (With Case)		 – 14g (w/o Case)
– 16g (With Case)
Other – LNA MAX2659ELT+ RF Amplifier
– Rechargeable Farah capacitance
– Low noise 3.3V regulator		 – LNA MAX2659ELT+ RF Amplifier
– Rechargeable Farah capacitance
– Low noise 3.3V regulator

Firmware support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Firmware support for IST8308 compass: PX4 V1.16.0+ for Pixhawk 6C, V1.14.3 for Pixhawk 6X.
