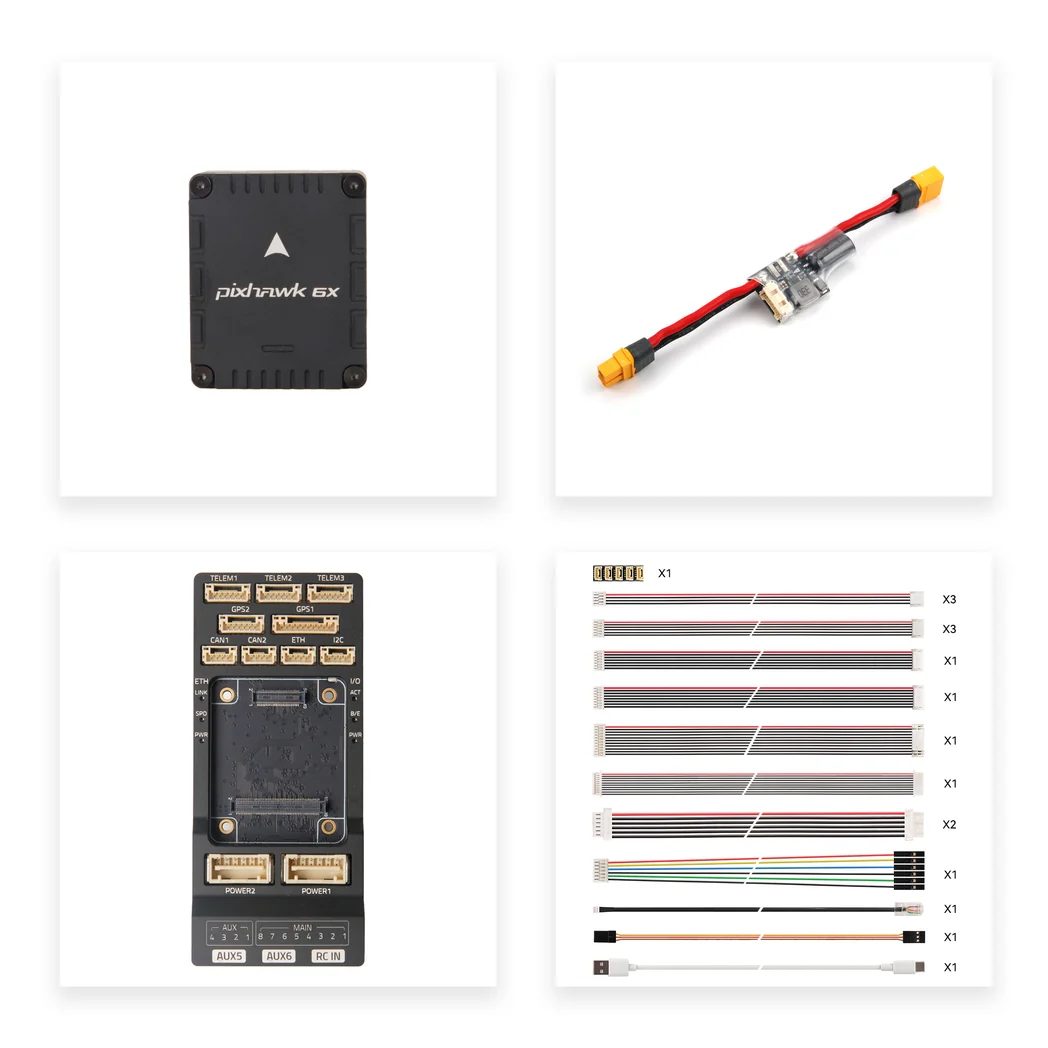

Holybro FC Pixhawk 6X v2A - PM02D

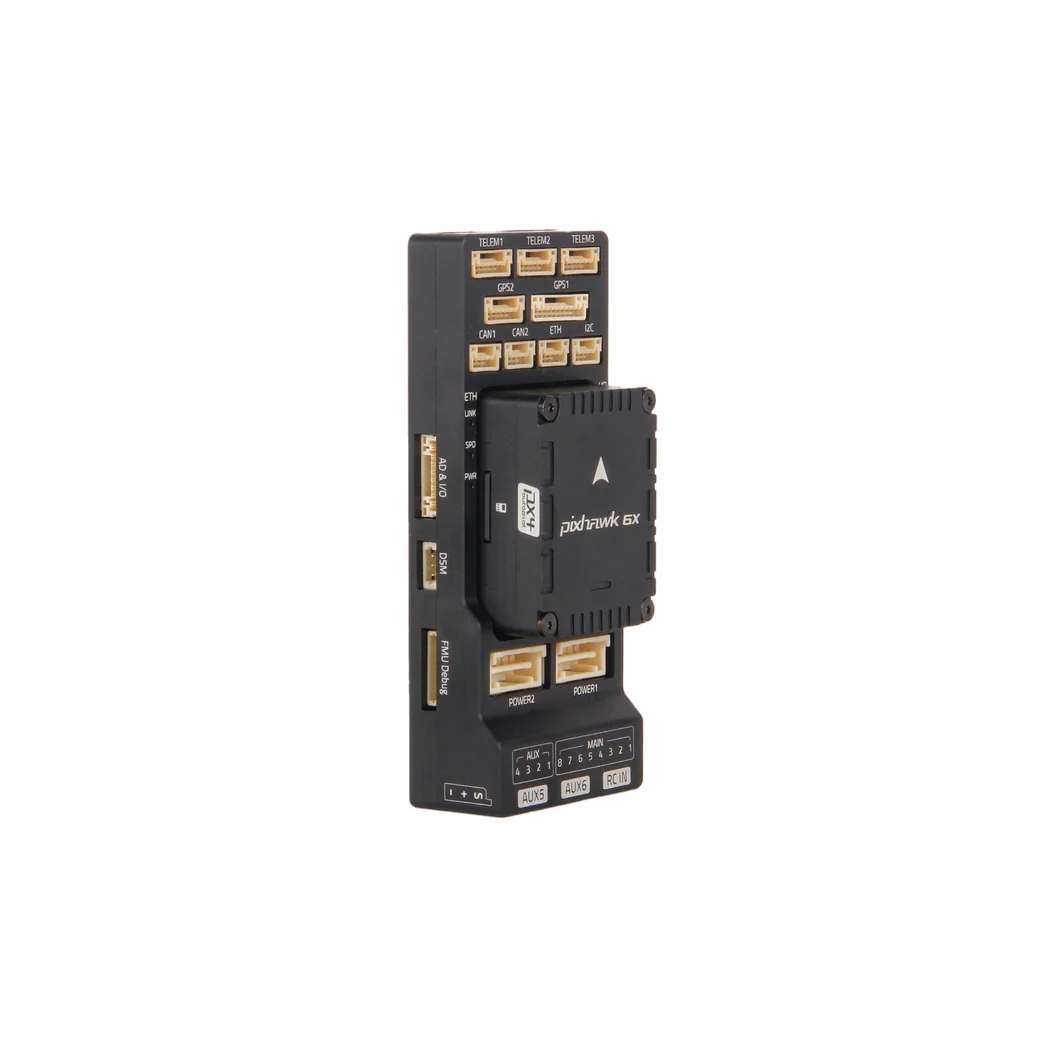

Holybro FC Pixhawk 6X v2A - PM02D - Image 2

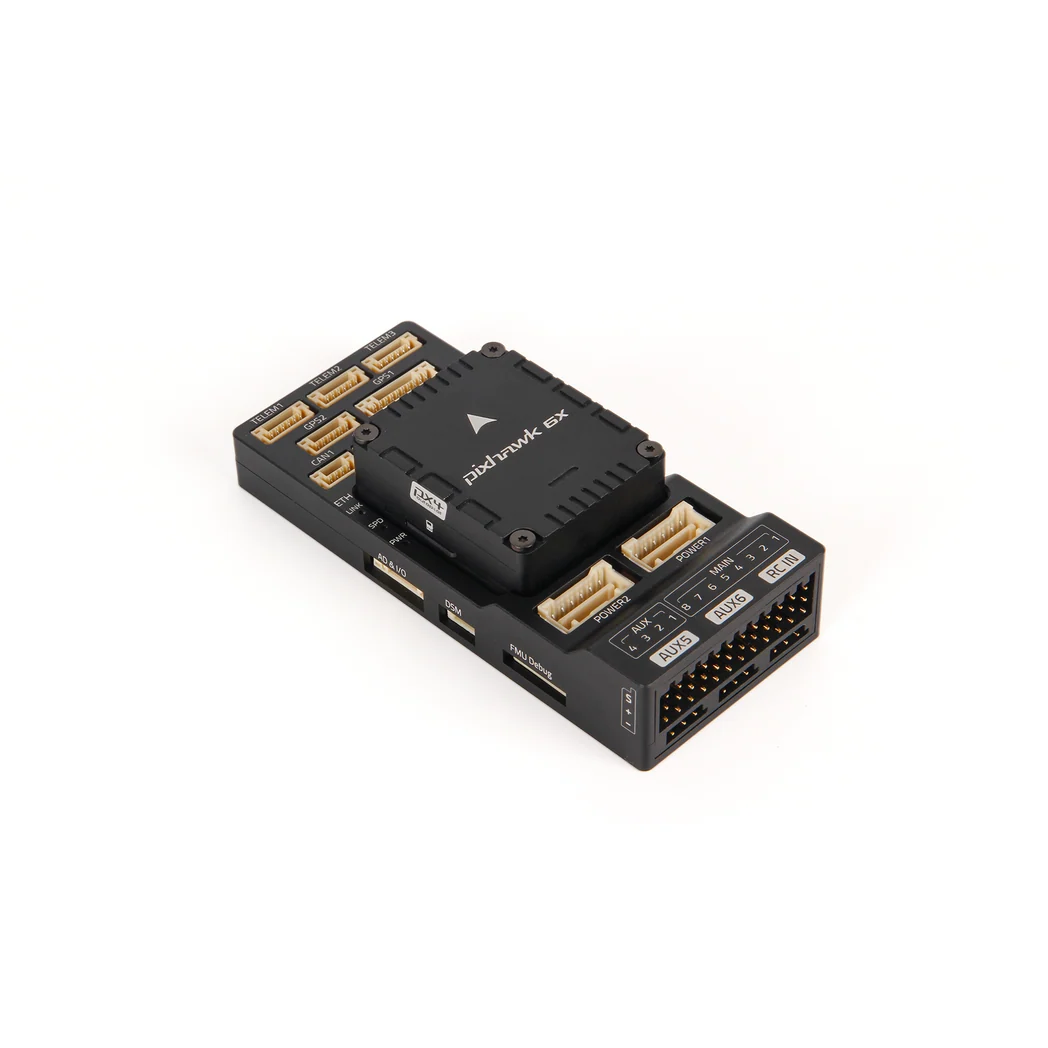

Holybro FC Pixhawk 6X v2A - PM02D - Image 3

Holybro FC Pixhawk 6X v2A – PM02D

Rp0,00

Available on backorder

Categories: Avionics & Control, Flight Controllers Brand: Holybro

Key Design Points

Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors
High-performance STM32H753 Processor with a clock speed of up to 480 MHz
Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Bus connector.
Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
All-New advanced durable vibration isolation material with resonance frequency in the higher spectrum
Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination).
Temperature-controlled IMU board, allowing the optimum working temperature of IMUs
Hardware switchable 3.3V or 5V signal mode (requires baseboard modification)
Digital power module support for better voltage and current data accuracy

Description
Reviews (0)

Description

Specification

Processors & Sensors

FMU Processor: STM32H753
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors (Shipping Currently, Rev8)
- Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)
- Barometer: ICP20100 & BMP388
- Mag: BMM150

On-board sensors (Previous Revision, Rev 3/4)
- Accel/Gyro: BMI088/ICM-20649
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: ICM-42670-P
- Mag: BMM150
- Barometer: 2x BMP388
NXP EdgeLock SE050 Plug & Trust hardware secure element

Electrical data

Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
Current Ratings:
- Telem1 & GPS2 combined current limit: 1.5A
- All other ports combined current limit: 1.5A
PWM Signal Voltage:
- Default 3.3V (Adjustable to 5V with a change onboard resistor)
Operating Temperature: -25-85°C

Mechanical data

Dimensions
- Flight Controller Module: 38.8 x 31.8 x 16.8mm
- Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)
- Mini Baseboard: 43.4 x 72.8 x 14.2 mm
Weight
- Flight Controller Module: 31.3g
- Standard Baseboard: 72.5g (Aluminum)
- Mini Baseboard: 26.5g
